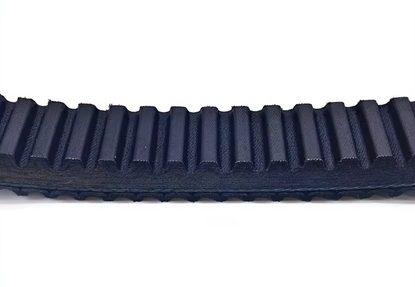

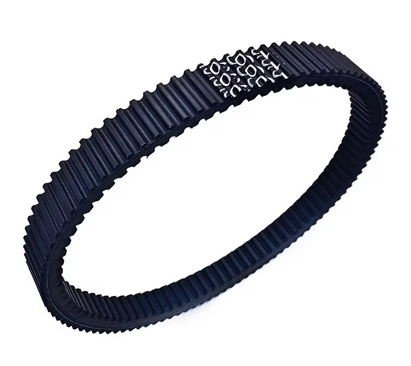

DRIVE BELT BOMBARDIER CAN-AM COMMANDER OUTLANDER RENEGADE MAVERICK BT01-854-30.1-J

This XTX2236 CVT drive belt is a direct OEM-style replacement belt for compatible Bombardier and Can-Am ATV and UTV models. It is used in the CVT transmission system to transfer engine power through the drivetrain while retaining the original mounting arrangement and factory-style fit.

Features

• Meets or exceeds OEM quality standards


• Direct OEM replacement


• Uses stock mounting locations


• Designed to handle increased power loads


• Manufactured to OEM specifications with matching appearance


• Factory tested before dispatch


• Suitable for high-powered ATV and UTV CVT applications


• Top and bottom cog design supports belt flexibility during CVT operation

Specifications

• Belt type: CVT drive belt


• Outside circumference: 38.66 in / 982 mm


• Top width: 1.32 in / 33.50 mm


• Construction: high-temperature neoprene or polychloroprene compound


• Reinforcement: aramid fibre


• Series: Dayco XTX / Extreme Torque

Cross-Reference OEM Part Numbers

• DAYCO XTX2236


• Dayco XTX2236


• XTX2236


• HD Bombardier 715-900-030


• Bombardier 715-900-030


• Bombardier 715-000-302


• Bombardier 715900030


• Bombardier 715000302


• Can-Am 420280362


• Can-Am 420-280-362


• Can-Am 420280360


• Can-Am 420-280-360


• Can-Am 715-900-212


• Can-Am 715900212


• BT01-854-30.1-J

Vehicle Fitments

Bombardier

• Outlander 650 HO EFI 4x4 (2006)


• Outlander 650 HO EFI 4x4 XT (2006)


• Outlander Max 650 HO EFI 4x4 (2006)


• Outlander Max 650 HO EFI 4x4 XT (2006)


• Outlander 800 HO EFI 4x4 (2006)


• Outlander 800 HO EFI 4x4 XT (2006)


• Outlander Max 800 HO EFI 4x4 (2006)


• Outlander Max 800 HO EFI 4x4 XT (2006)

Can-Am

• Outlander 400 H.O. EFI 4x4 (2008)


• Outlander 500 4x4 (2009-2014)


• Outlander 500 4x4 DPS (2013-2014)


• Outlander 500 4x4 XT (2009-2014)


• Outlander 500 4x4 XT-P (2010)


• Outlander 500 H.O. EFI 4x4 (2007-2008)


• Outlander 500 H.O. EFI 4x4 XT (2007-2008)


• Outlander Max 500 4x4 (2009-2014)


• Outlander Max 500 4x4 DPS (2013-2014)


• Outlander Max 500 4x4 XT (2009-2014)


• Outlander Max 500 4x4 XT-P (2010)


• Outlander Max 500 H.O. EFI 4x4 (2007-2008)


• Outlander Max 500 H.O. EFI 4x4 XT (2007-2008)


• Outlander Max 500 LTD 4x4 (2010)


• Renegade 500 4x4 (2009-2014)


• Renegade 500 H.O. EFI 4x4 (2008)


• Outlander 650 4x4 (2009-2011, 2013-2018)


• Outlander 650 4x4 DPS (2013-2018)


• Outlander 650 4x4 X mr (2013-2018)


• Outlander 650 4x4 XT (2009-2018)


• Outlander 650 4x4 XT-P (2010-2011)


• Outlander 650 6x6 DPS (2017-2018)


• Outlander 650 6x6 XT (2015-2016)


• Outlander 650 H.O. EFI 4x4 (2007-2008)


• Outlander 650 H.O. EFI 4x4 XT (2007-2008)


• Outlander Max 650 4x4 (2009-2015)


• Outlander Max 650 4x4 DPS (2013-2018)


• Outlander Max 650 4x4 XT (2009-2018)


• Outlander Max 650 4x4 XT-P (2010-2012)


• Outlander Max 650 H.O. EFI 4x4 (2007-2008)


• Outlander Max 650 H.O. EFI 4x4 XT (2007-2008)


• Commander 800R 4x4 (2011-2018)


• Commander 800R 4x4 DPS (2013-2018)


• Commander 800R 4x4 XT (2011-2018)


• Commander MAX 800R 4x4 DPS (2016)


• Outlander 800 H.O. EFI 4x4 (2007-2008)


• Outlander 800 H.O. EFI 4x4 XT (2007-2008)


• Outlander 800R 4x4 (2009-2014)


• Outlander 800R 4x4 DPS (2013-2014)


• Outlander 800R 4x4 X-MR (2011-2012)


• Outlander 800R 4x4 XT (2009-2014)


• Outlander 800R 4x4 XT-P (2010-2011, 2013-2014)


• Outlander 800R 4x4 X-XC (2011)


• Outlander Max 800 H.O. EFI 4x4 (2007-2008)


• Outlander Max 800 H.O. EFI 4x4 XT (2007-2008)


• Outlander Max 800 H.O. EFI LTD 4x4 (2007-2008)


• Outlander Max 800R 4x4 (2009-2012)


• Outlander Max 800R 4x4 DPS (2013-2014)


• Outlander Max 800R 4x4 XT (2009-2014)


• Outlander Max 800R 4x4 XT-P (2010-2014)


• Outlander Max 800R LTD 4x4 (2009-2012)


• Renegade 800 H.O. EFI 4x4 (2008)


• Renegade 800 X H.O. EFI 4x4 (2008)


• Renegade 800R 4x4 (2009-2015)


• Renegade 800R 4x4 X-XC (2010-2015)


• Renegade 800R X 4x4 (2009)


• Outlander 850 4x4 DPS (2016-2018)


• Outlander 850 4x4 X mr (2016-2018)


• Outlander 850 4x4 XT (2016-2018)


• Outlander 850 4x4 XT-P (2016-2018)


• Outlander Max 850 4x4 XT (2016-2018)


• Outlander Max 850 4x4 XT-P (2016-2018)


• Renegade 850 4x4 (2016-2018)


• Renegade 850 4x4 X-XC (2016-2018)


• Commander 1000 4x4 (2011-2014)


• Commander 1000 4x4 DPS (2013-2017)


• Commander 1000 4x4 LTD (2012-2017)


• Commander 1000 4x4 Mossy Oak Hunting (2016-2017)


• Commander 1000 4x4 X (2011-2013)


• Commander 1000 4x4 XT (2011-2017)


• Commander 1000 4x4 XT-P (2014-2017)


• Commander MAX 1000 4x4 (2016)


• Commander MAX 1000 4x4 DPS (2014-2017)


• Commander MAX 1000 4x4 LTD (2015-2017)


• Commander MAX 1000 4x4 Mossy Oak Hunting Edition (2016)


• Commander MAX 1000 4x4 XT (2014-2017)


• Commander MAX 1000R 4x4 DPS (2017)


• Maverick 1000R 4x4 (2013-2016)


• Maverick 1000R 4x4 DPS (2016-2018)


• Maverick 1000R 4x4 X mr (2014)


• Maverick 1000R 4x4 X mr DPS (2014-2018)


• Maverick 1000R 4x4 X rs DPS (2013-2018)


• Maverick 1000R 4x4 X xc DPS (2013-2018)


• Maverick 1000R Turbo 4x4 DPS (2014-2018)


• Maverick 1000R Turbo 4x4 X xc DPS (2014-2018)


• Maverick MAX 1000R Turbo 4x4 DPS (2014-2017)


• Maverick MAX 1000R Turbo 4x4 X rs DPS (2013-2014)


• Maverick MAX 1000R Turbo 4x4 X xc DPS (2014)


• Outlander 1000 4x4 X-MR (2013)


• Outlander 1000 4x4 XT (2012-2014)


• Outlander 1000 4x4 XT-P (2013-2015)


• Outlander 1000 6x6 XT (2015-2018)


• Outlander 1000R 4x4 DPS (2016-2018)


• Outlander 1000R 4x4 Mossy Oak Hunting (2017-2018)


• Outlander 1000R 4x4 X mr (2016-2018)


• Outlander 1000R 4x4 XT (2016-2018)


• Outlander 1000R 4x4 XT-P (2016-2018)


• Outlander Max 1000 4x4 DPS (2013-2014)


• Outlander Max 1000 4x4 Limited (2013-2014)


• Outlander Max 1000 4x4 XT (2013-2014)


• Outlander Max 1000 4x4 XT-P (2013-2014)


• Outlander Max 1000R 4x4 Limited (2016-2018)


• Outlander Max 1000R 4x4 XT (2016-2018)


• Outlander Max 1000R 4x4 XT-P (2016-2018)


• Renegade 1000 4x4 (2012-2014)


• Renegade 1000 4x4 X-XC (2012-2014)


• Renegade 1000R 4x4 (2016-2018)


• Renegade 1000R 4x4 X-MR (2016-2018)


• Renegade 1000R 4x4 X-XC (2016-2018)
