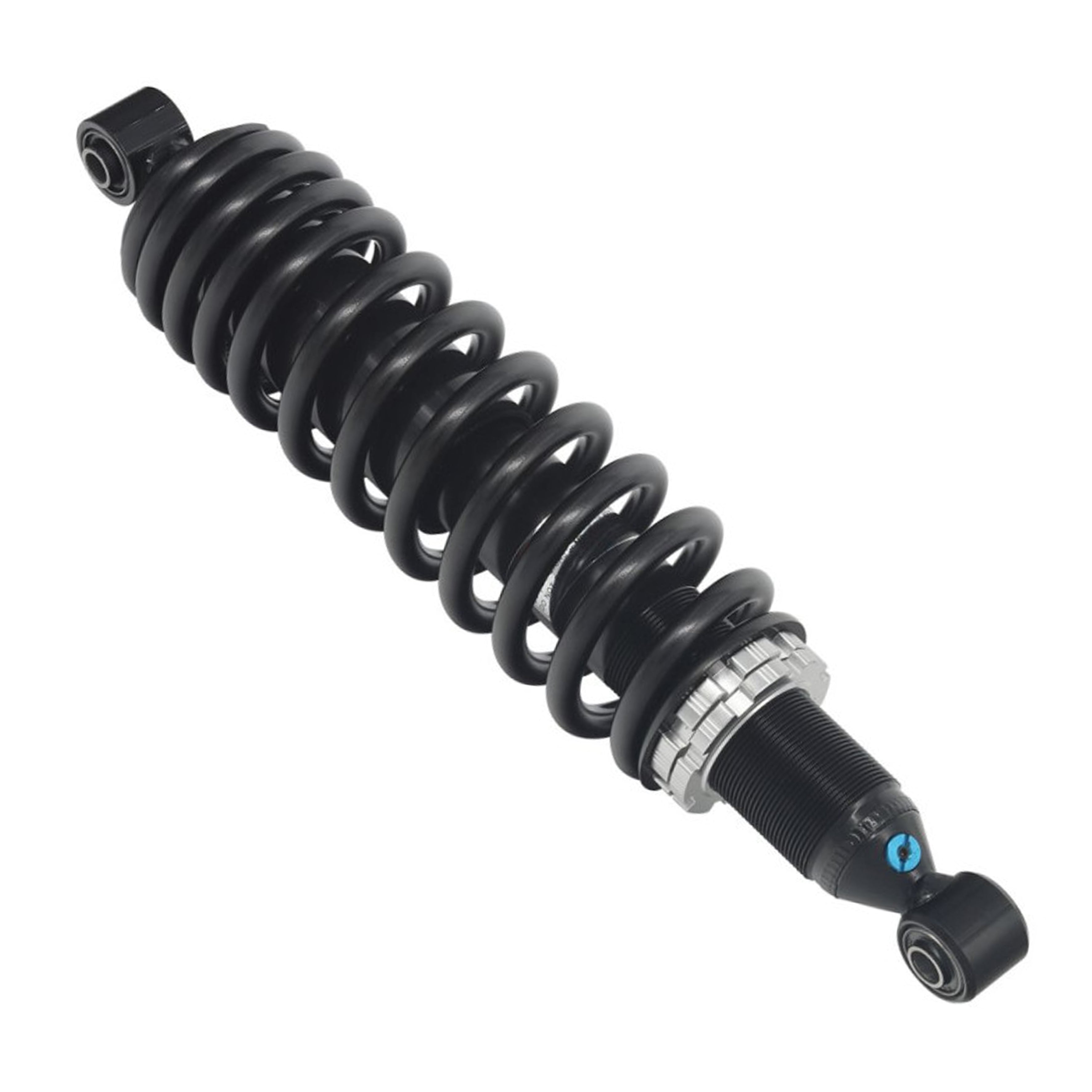

SHOCK FRONT CF MOTO ATV CFORCE, BRONCO AU-04372, 9010-050600

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.

10% stiffer springs provide a better ride and higher load capacity.

Works great on the front when installing a snow plow.

Smooth black color blends perfectly with any OEM ATV.

Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.

Sold individually – Includes one shock, with spring, and spring retainers.

CF MOTO UTV FITMENT

• CFORCE 500 CF500-2 (2008-2009)


• CFORCE 500 CF500-2A (2008-2009)


• CFORCE 500 HO CF500AU-6L (2015-2018)


• CFORCE 500 SWB (2007-2008)


• CFORCE 500 SWB (2013-2016)


• CFORCE 500-A LWB (2007-2008)


• X5 (CFORCE 500) LWB (2010-2012)


• X5 (CFORCE 500) SWB (2010-2012)


• CFORCE 600 CF600AU-L (2019-2021)

SPECIFICATIONS

Position Top Hole I.D (mm): 10

Top Eyelet Width (mm): 32

Bottom Hole I.D (mm): 10

Bottom Eyelet Width (mm): 30

Tube O.D (mm): 38

Stroke (mm): -

Spring O.D (mm): 72.5

Spring Wire Diameter (mm): 10

Spring Rate (lbs/inch): 60/190

Spring Rate (kg/mm): 3.3/4.7

Center to Center (mm): 365

Center to Center (inches): 14 3/8
