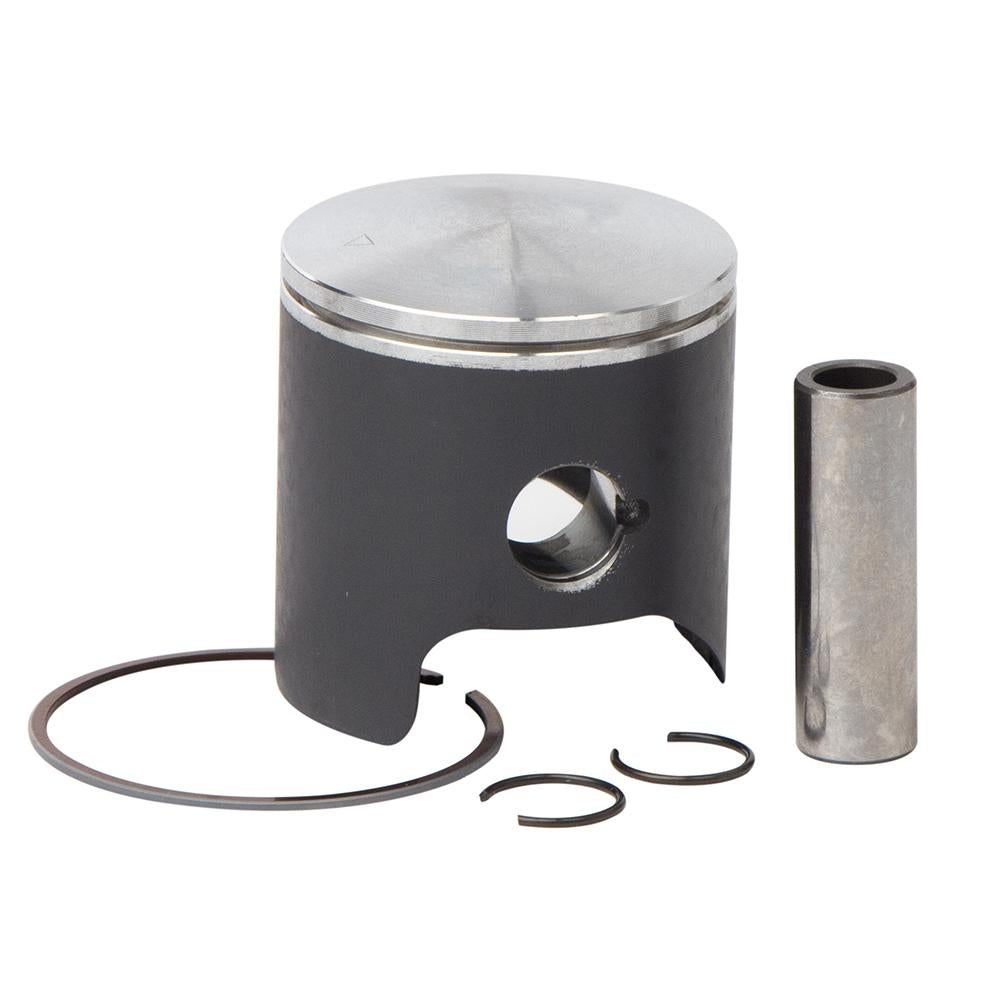

PISTON KIT VERTEX 45.0 E/F KTM SX 65 09-22, VERTEX 23430EF GAS GAS MC65/HUSKY TC65

VERTEX UK PISTON KIT         23430EF           (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE.   45.00 [EF   44.98mm]

Replacement Parts.

• Rings.   53010004500
• Pin.   715332
• Clips. 72065

Cross reference numbers ONLY.

•  Piston Cpl. I   46230007000 I
• Piston Cpl. Ii   46230007000 II
• Piston Pin 12X38 46030033000
• Circlip 09 45230074000
• Piston Ring 45Mm 65Ccm 46030030500

MODEL FITMENT

• GAS GAS MC65 2020-2021
• HUSQVARNA TC65 2017-2022
• KTM SX65 2009-2022
