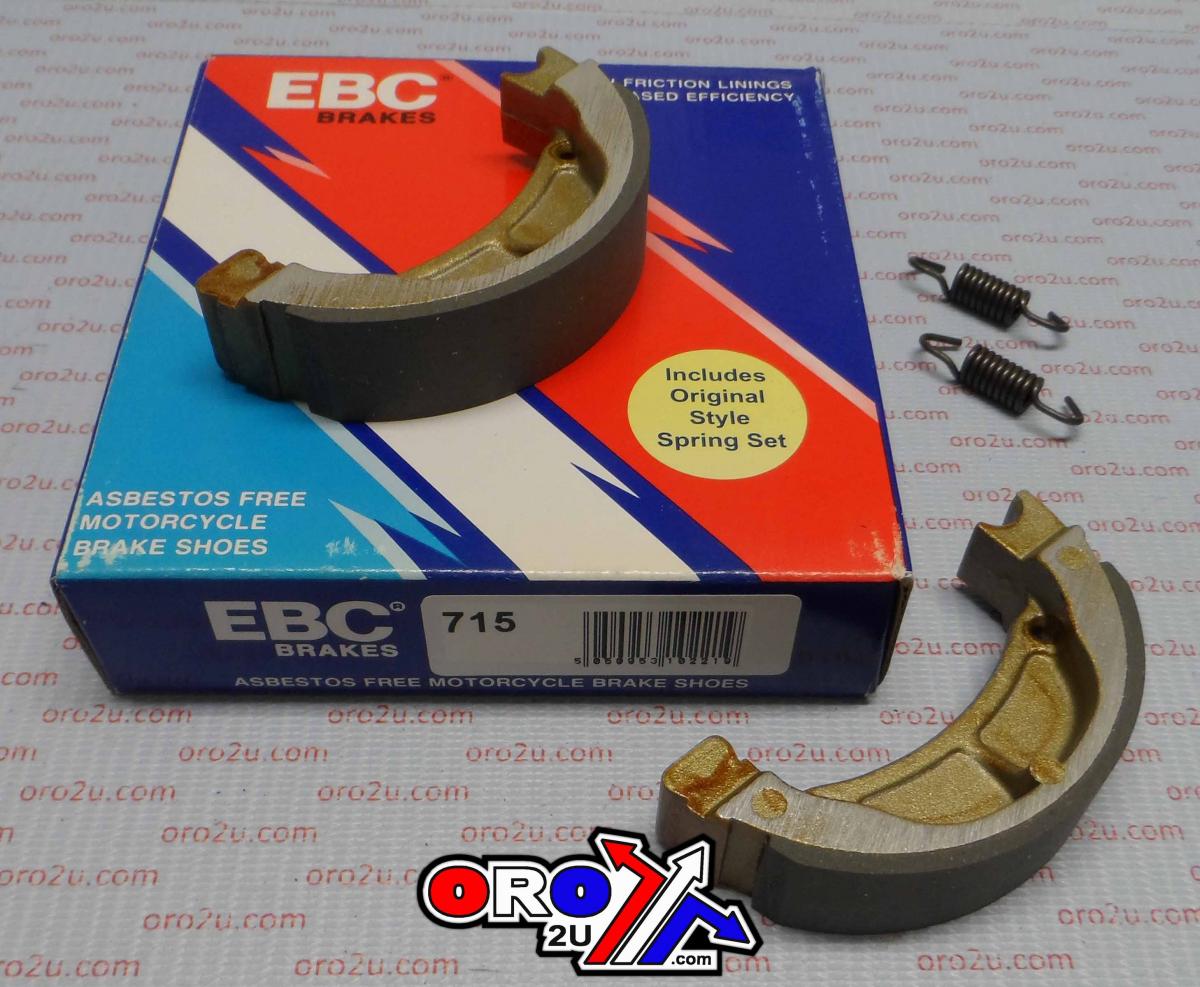

BRAKE SHOES KAWASAKI SUZUKI 60 110 EBC K715

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The EBC plain replacement design and bonded lining with high-pressure die cast aluminium platform construction balance bite, modulation and durability under heat. Supplied as a complete set of brake shoes with springs, it is suitable for rear drum-brake applications and is not supplied with any specific approval or compliance marking.

Features

• Radius ground to match the brake drum profile


• Edge-trimmed linings with lead-in and lead-out chamfers


• Supplied complete with OE-style brake shoe springs


• Intended for standard drum-brake replacement use

Specifications

• Position: Rear


• Compound / material: Bonded brake lining on die cast aluminium platform


• Construction / design: Radius ground, edge trimmed, chamfered lining ends, supplied with springs

Dimensions

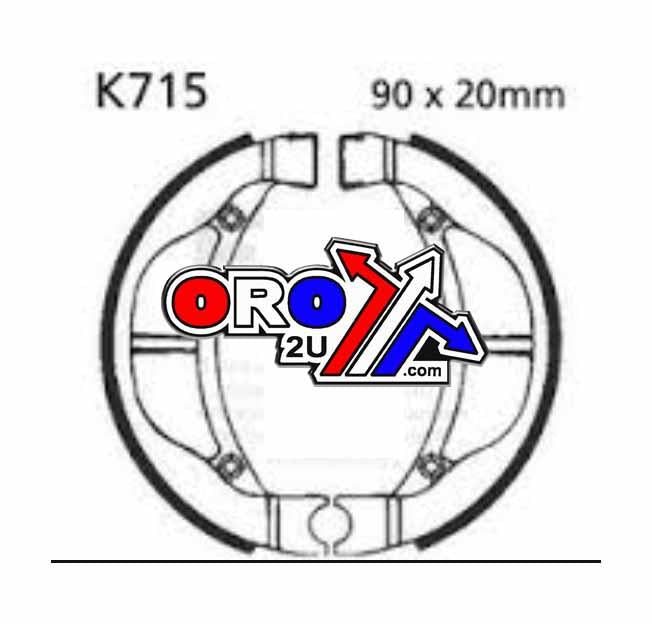

• Pad/shoe dimensions (L × H × T): 90 mm (diameter) × 20 mm (width)


• Weight: 0.15 kg

Cross Reference Numbers

•


  EBC Part number: K715




Vehicle Fitment

KAWASAKI (Front Left)

• KX 60 (1985-1986, 1988-1991, 1993, 1995, 1998, 2002-2003)


• KLX 110 L (2010-2021)


• KLX 110 R (2002-2026)

KAWASAKI (Rear Right)

• KX 60 (1983-1984, 1987, 1992, 1994, 1996-1997, 1999-2001)


• KX 80 (1983)


• KX 80 Rear Drum (1984-1987)

SUZUKI (Front Left)

•


  DR-Z 110 (2003-2005)




SUZUKI (Rear Left)

•


  RM 60 (2003)
