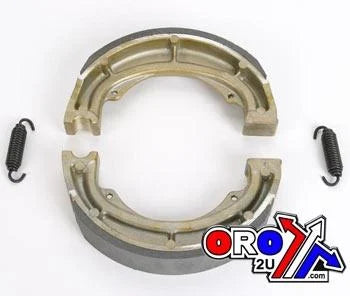

BRAKE SHOES KAWASAKI SUZUKI EBC S605

This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The plain motorcycle replacement design and bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for 150 mm drum brake systems in rear applications.

Features

• Radius ground to match the drum for stable contact and predictable engagement


• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite


• Supplied with OE-style brake shoe springs for correct return and fit

Specifications

• Product type: Brake shoe set


• Product range/series: Plain motorcycle replacement brake shoes


• Position: Rear


• Compound / material: Bonded brake lining


• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings


• Direction of rotation: Not directional

Dimensions

• Pad/shoe dimensions (L × H × T): 150 mm (drum diameter) × 28 mm (shoe width)


• Weight: 0.45 kg

Cross Reference Numbers

•


  EBC: S605




Vehicle Fitment

KAWASAKI (Rear Left)

•


  KX 420 A (1980-1981)




KAWASAKI (Rear Right)

• KDX 250 B (1979)


• KX 250 (1974)


• KX 250 A (1975-1981)

SUZUKI (Front Left)

• DR 400 ST|SX (1979)


• PE 400 T|X (1979)


• RM 250 N (1979)


• RM 400 N (1979)


• SP 370 C|N (1978)


• TS 250 ER (1974-1977, 1979, 1981-1982)

SUZUKI (Front Right)

•


  SB 200 N|X (1979-1981)




SUZUKI (Rear Left)

• DR 400 ST|SX (1980-1981)


• DR 500 (1981-1983, 1986)


• LT 125 E (1984)


• LT 230 G (1985-1986)


• LT-F 230 G|H (1986-1987)


• PE 250 B|C|N (1977-1979)


• PE 250 T|X|Z (1980-1982)


• PE 400 T|X (1980-1981)


• RM 250 A|B|C (1976-1978)


• RM 400 C (1978)


• SP 370 C|N (1977, 1979-1980)


• SP 400 T (1980)


• TS 250 ER (1978, 1980)

SUZUKI (Rear Right)

• LT 160 (1989-1992)


• LT 160 Quadsport (2003-2004)


• LT 185 E|F (1984-1985)


• LT-F 160 (1990-2003)


• SX 200 SH41A (1990-1991)
