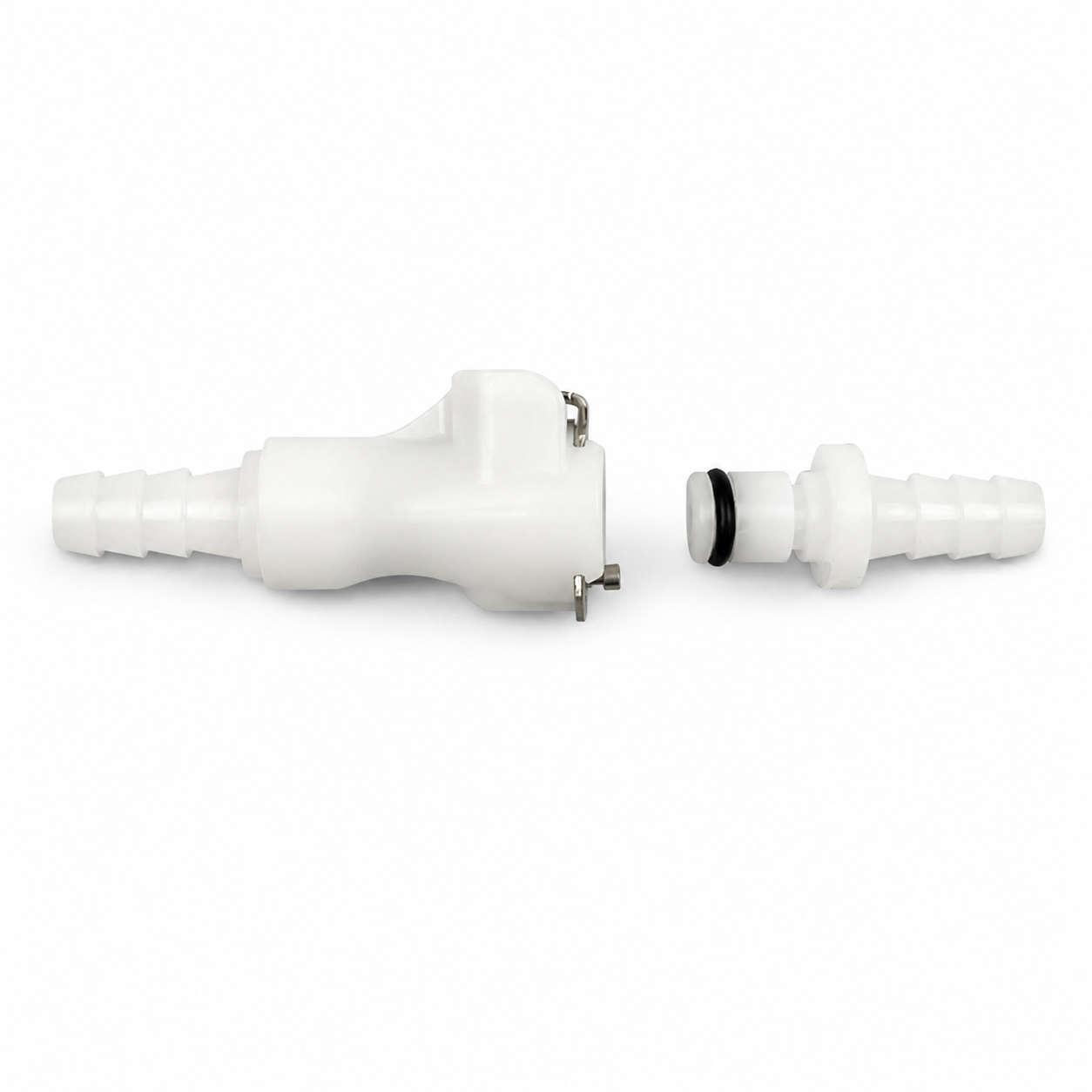

QUICK DISCONNECT 6mm MOTION PRO 12-0029

Single shut-off fuel quick disconnect designed for controlled fuel flow between the tank and carburettor. When connected, fuel flows; when disconnected, flow stops. Suited to 6.35 mm (1/4 in) ID fuel lines, with compatibility for 7.94 mm (5/16 in) ID lines as specified.

Features

• Single shut-off valve permits flow when connected and stops flow when disconnected


• Suitable for fuel supply between fuel tank and carburettor


• Compatible with 6.35 mm and 7.94 mm ID fuel lines


• Capable of operating in extreme temperatures


• Fitted with Viton® fluoroelastomer O-rings for superior chemical resistance


• Made in the USA

Specifications

• Type: Quick disconnect with single shut-off


• Compatible hose IDs: 6.35 mm and 7.94 mm


• Temperature range: -40°C to 82°C


• Seal material: Viton® fluoroelastomer O-rings


• Application: Fuel tank to carburettor connection

Cross Reference Numbers

• 12-0029
