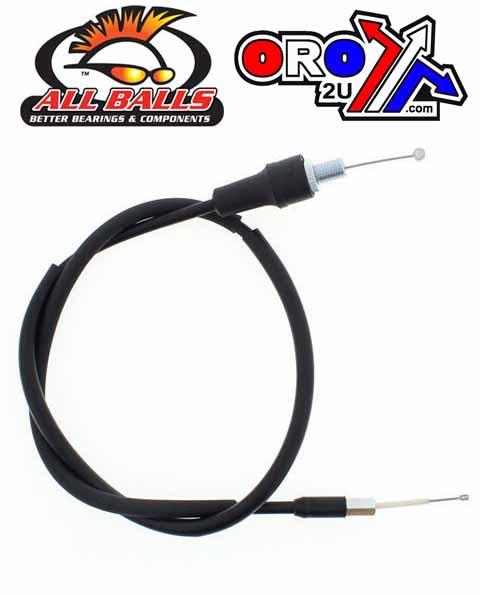

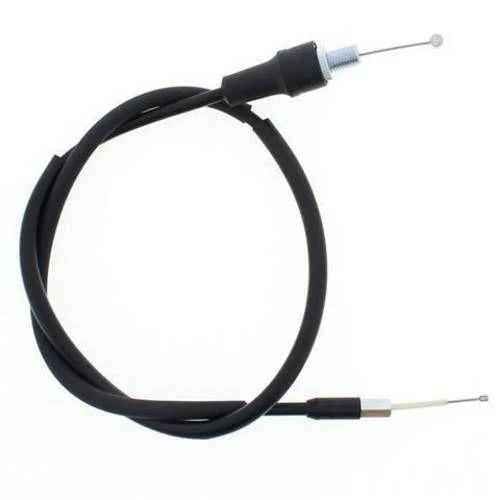

CABLE THROTTLE. 07-16 YFM700, ALLBALLS 45-1075 3B4-26311-20

Product: Cable, Black Vinyl, Throttle ALLBALLS 45-1075, Made in Japan

Features:

• Throttle cable assembly


• Black PVC outer jacket for maximum flexibility and durability


• Steel inner casing is tightly coiled for low compression ratios


• Pre-lubricated nylon inner sleeve guarantees smooth operation and long life


• All wire ends are bird-caged to terminal casting for superior pull-out resistance


• EPDM molded rubber components for high UV resistance and long life


• Injected-molded components are manufactured from high-strength POM material

Included Items:

• (1) Black throttle cable

Housing Length: 31 5/8 in.

Travel: 3 1/2 in.

Specifications:

• Housing: 6.0mm


• Inner wire: 1.5mm


• Nipple: 6x6mm / 4x3mm


• Overall: 904mm


• Free length: 88mm


• Housing length: 806mm

Cross Reference Numbers:

• 3B4-26311-20-00


• MOTION PRO 05-0352


• BRONCO 105-352

Compatibility:

Yamaha:

• Kodiak 700 4WD (2016)


• YFM550 Grizzly (2009-2013)


• YFM550 Grizzly EPS (2009-2013)


• YFM700 Grizzly (2007-2016)


• YFM700 Grizzly EPS (2008-2016)
