HD COIL SHOCK SPRING COMPRESSOR 20mm - 100mm

A heavy-duty motorcycle coil spring compressor set designed for the safe assembly and disassembly of suspension units. Built around a square stainless-steel housing with robust chrome-alloy hardware and forged chrome-alloy claws, the set includes two opposing compressors with protective plastic jaw inserts to prevent damage to spring coatings. Suitable for most classic and modern motorcycles, including twin rear shock applications.

Features

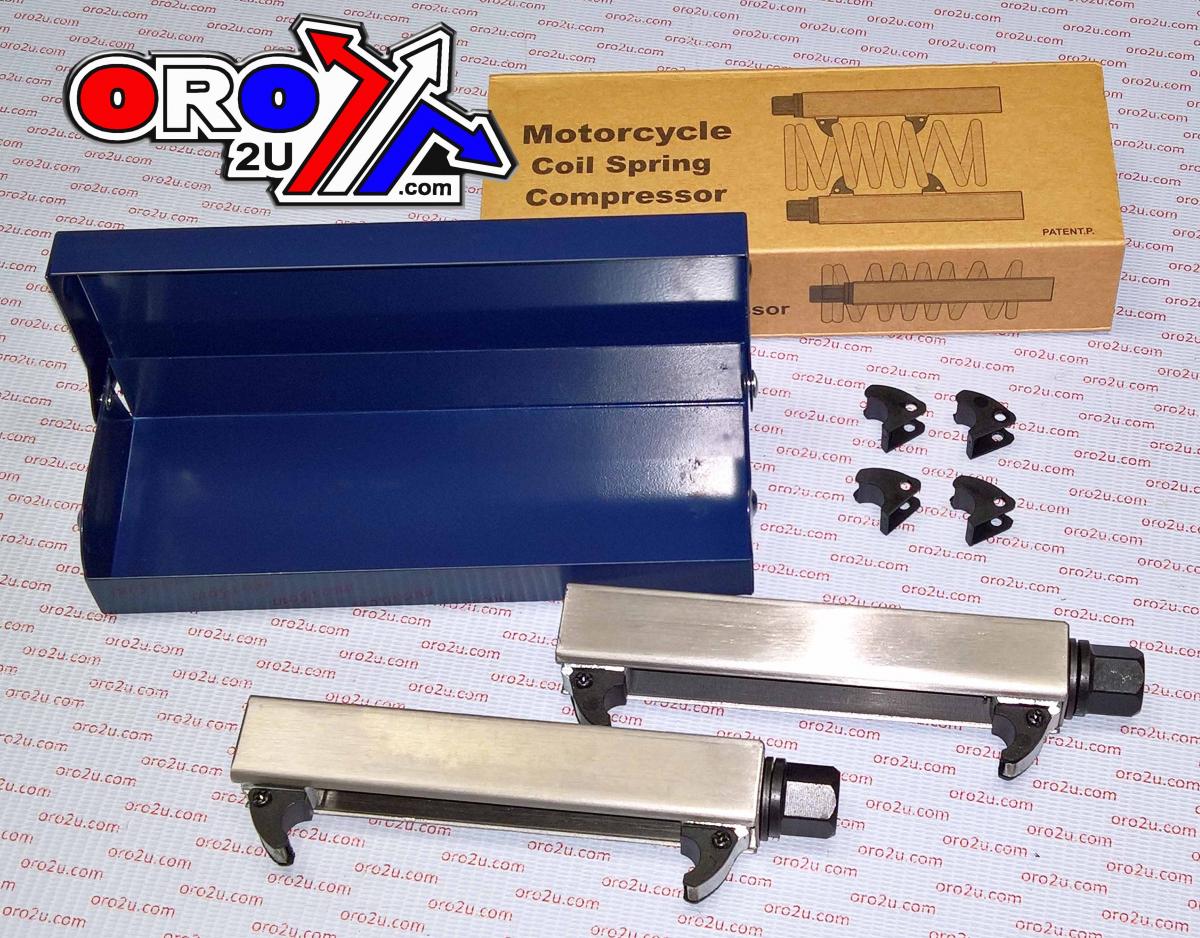

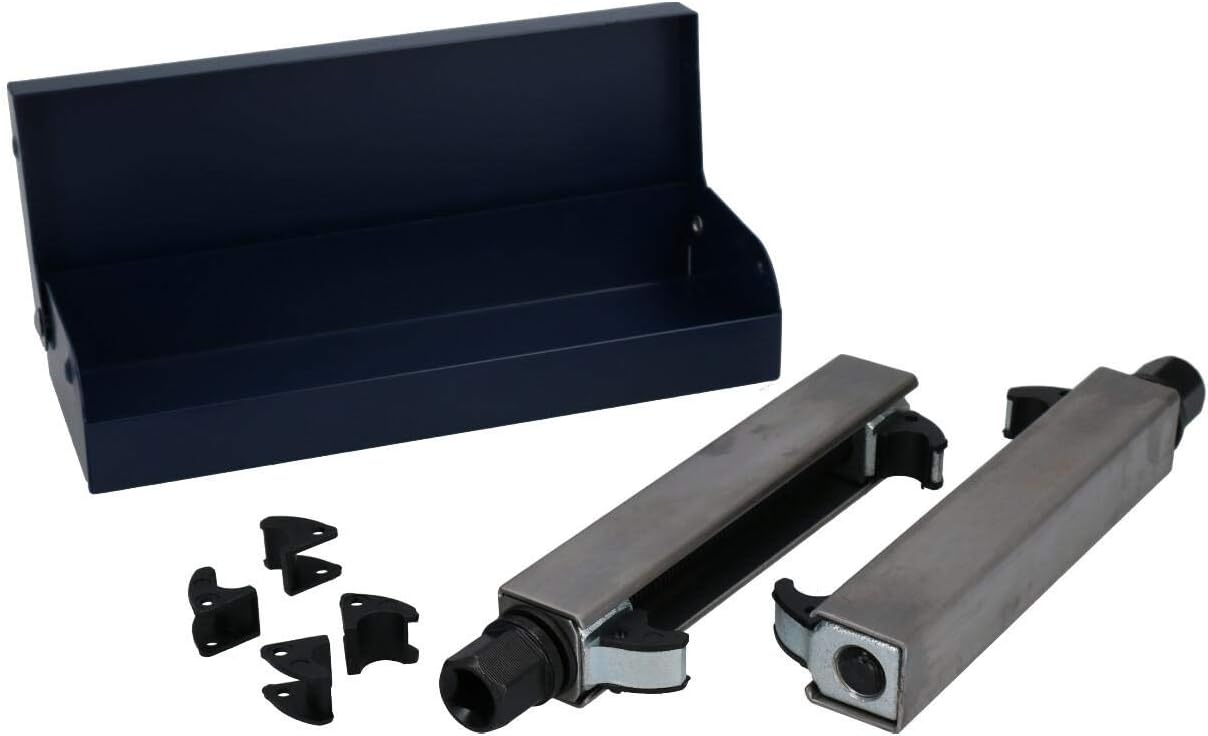

• Deluxe motorcycle coil spring compressor set with square stainless-steel housing


• Bolts manufactured from chrome alloy steel


• Claw jaws constructed from forged chrome alloy


• Includes 4 plastic insert jaws to protect the spring’s colour coating


• Suitable for most types of classic and modern motorcycle coil springs


• Designed specifically for twin rear shocks on most bikes


• Set includes 2 spring compressors to be used opposite each other on the coil


• Supplied with 4 additional spare claws


• Always release the coil equally on either side

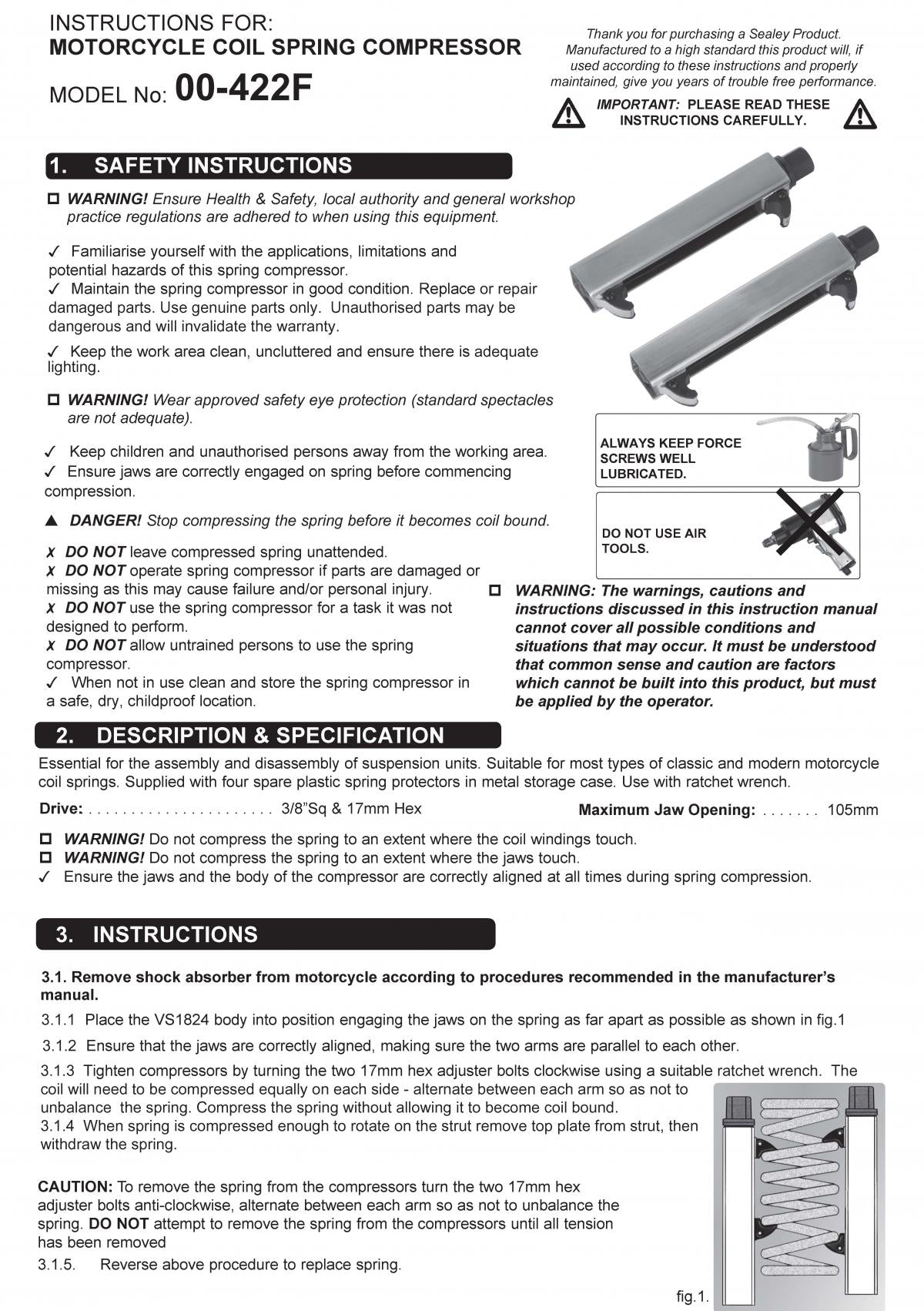

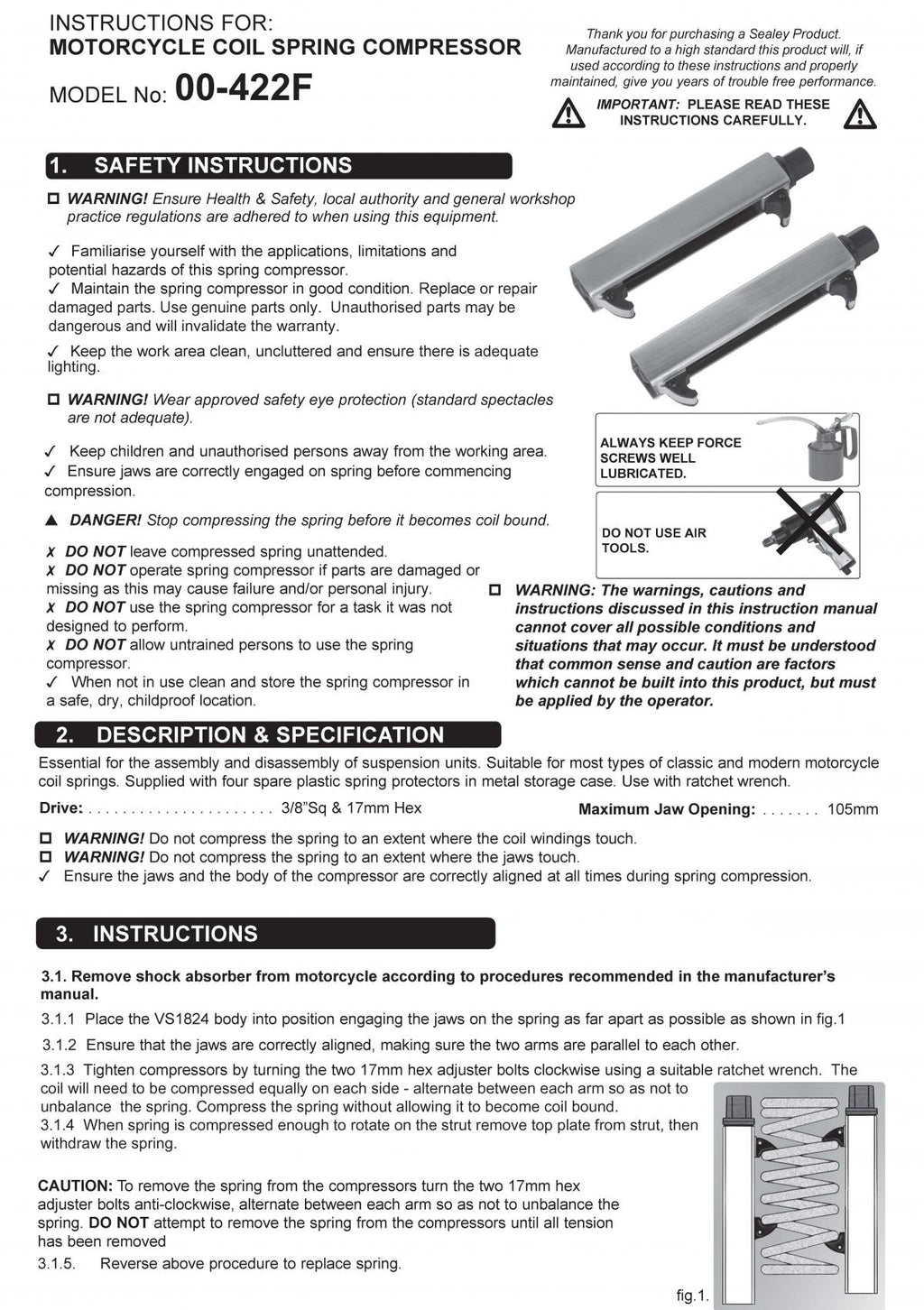

• Refer to the instruction sheet for safe use

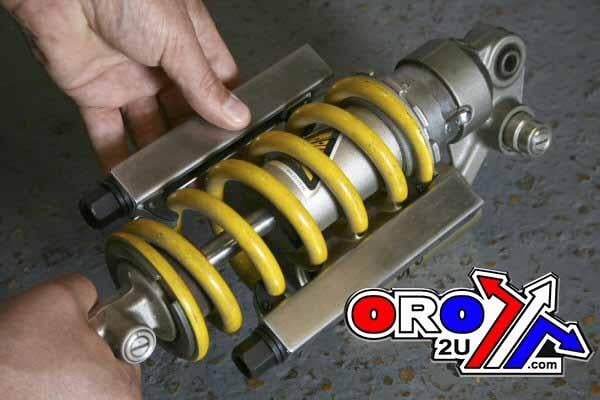

Simple to use:

1. Ensure the two bars are directly opposite each other


2. Hook the claw over the bottom complete coil and wind down the bolt until gently secured on the top complete coil


3. Attach the other bar to the other side (directly opposite) and wind down the bolt to equal distance


4. Wind down the bar equally on each side of the coil until the required compression is achieved

Specifications

• Maximum jaw opening: 100 mm


• Minimum jaw opening: 20 mm


• Drive options: 17 mm spanner or 3/8" drive ratchet


• Part number: 00-422.F
